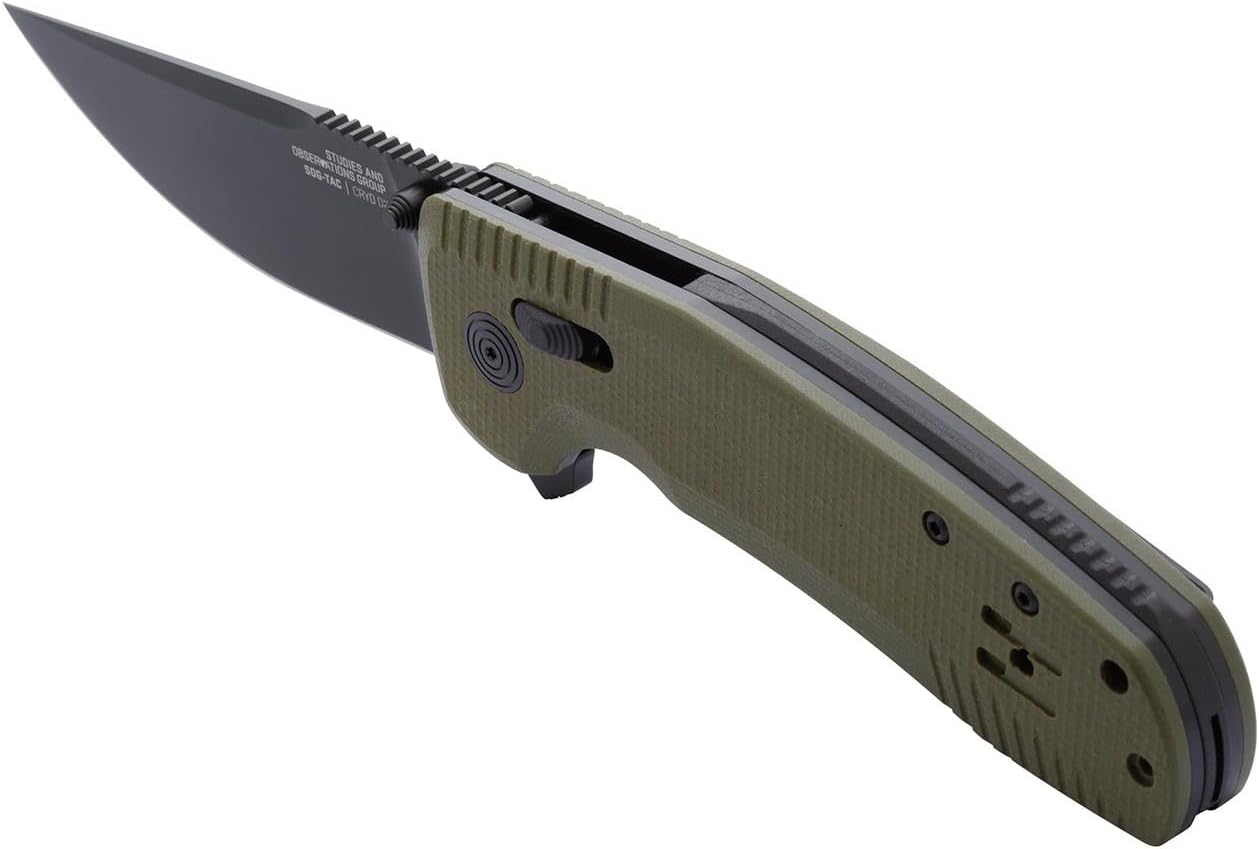

SOG's XR System
SOG's TAC XR line introduced their XR (Cross-Retention) lock system — a mechanism that engages at two contact points rather than the single-contact of most liner and frame locks. SOG claims approximately 60% stronger lockup than a conventional liner lock.
Blade Geometry Analysis
- Blade length: 3.39 inches
- Blade thickness (spine): 0.12 inches
- Blade-to-handle ratio: 0.52 (blade 52% of overall length)
- Steel: D2 tool steel at 58–60 HRC
- Edge angle: Approximately 20° per side
The blade-to-handle ratio of 0.52 falls on the compact end for a tactical folder — the handle gives you substantial grip purchase relative to blade length, which aids retention during cutting tasks.
D2 Tool Steel in a Tactical Context
D2 is a semi-stainless tool steel at the harder end of EDC steel choices. At 58–60 HRC, it offers good edge retention for a tactical knife through rope, synthetic webbing, and zip ties. The trade-off is sharpening difficulty and moderate corrosion resistance — D2 requires occasional oiling in humid environments.
XR Lock Performance
The two-point contact of the XR lock produces measurably stiffer lockup than a single-point liner lock. Closing requires deliberate disengagement of both contact points — a safety feature that reduces accidental closure under lateral stress.
The SOG TAC XR delivers on its tactical brief: a strong two-point lock, capable D2 steel, fast assisted opening, and aggressive aesthetics. The geometry ratios are well-considered for the intended use case. An honest, well-engineered tactical folder at a reasonable price (~$60–$80).
